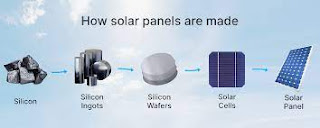

How Solar Panels are Made

 Introduction

Solar panels are becoming increasingly popular as a source of renewable energy. They work by converting sunlight into electricity through the use of photovoltaic cells. But have you ever wondered how these panels are made? In this blog post, we'll explore the process of making solar panels from start to finish.

Step 1: Polysilicon Production

The first step in making solar panels is the production of polysilicon, which is the raw material used to make the photovoltaic cells. Polysilicon is made by heating high-purity silicon in a vacuum furnace until it melts. The molten silicon is then cast into cylindrical ingots, which are cut into thin wafers.

In addition to the traditional method of producing polysilicon by heating high-purity silicon, there are also newer methods such as the fluidized bed reactor (FBR) process and the upgraded metallurgical-grade (UMG) silicon process. These newer methods have the potential to reduce the cost of polysilicon production and increase the efficiency of solar panels.

Polysilicon is the most expensive component of solar panels, accounting for up to 60% of the cost. As a result, reducing the cost of polysilicon production is a major focus of research and development in the solar industry.

One way to reduce the cost of polysilicon production is to use lower-quality silicon feedstocks, such as metallurgical-grade silicon, instead of high-purity silicon. This approach can reduce the cost of polysilicon production by up to 80%.

Another method for reducing the cost of polysilicon production is to improve the efficiency of the production process. This can be achieved through the use of advanced technologies, such as fluidized bed reactors and upgraded metallurgical-grade silicon processes.

The process of producing polysilicon can also have environmental impacts. For example, the traditional process of producing polysilicon requires large amounts of energy, which can result in greenhouse gas emissions. In addition, the waste products from the production process can be hazardous to the environment. As a result, many companies are working to develop more sustainable methods of producing polysilicon, such as using renewable energy sources and recycling waste materials.

Step 2: Cell Production

The next step is the production of the photovoltaic cells. This is done by slicing the polysilicon wafers into thin sheets using a diamond saw. These sheets are then coated with a phosphorous solution to create a positive electrical charge on one side of the cell and a negative charge on the other side.

After the cells are coated with the phosphorous solution, they undergo a firing process in a furnace to activate the positive charge on one side of the cell. The cells are then treated with an anti-reflective coating to reduce the amount of sunlight that is reflected back, increasing the amount that is absorbed and converted into electricity.

There are several different types of solar cells, including monocrystalline, polycrystalline, and thin-film. Each type of cell has its own unique production process.

Monocrystalline cells are made from a single crystal of silicon, which is grown from a seed crystal. This process is known as the Czochralski method. The resulting cells are highly efficient, but also the most expensive to produce.

Polycrystalline cells are made from multiple crystals of silicon, which are melted and then re-solidified. This process is less expensive than the Czochralski method, but the resulting cells are slightly less efficient.

Thin-film cells are made by depositing a thin layer of photovoltaic material onto a substrate, such as glass or metal. This process is less expensive than the other methods, and the resulting cells are lighter and more flexible, but also less efficient.

Regardless of the type of cell being produced, the process begins with the preparation of the silicon wafer. This involves cleaning the wafer to remove any impurities and then applying a layer of phosphorous to one side of the wafer.

After the cells are coated with the phosphorous solution, they undergo a firing process in a furnace to activate the positive charge on one side of the cell. The cells are then treated with an anti-reflective coating to reduce the amount of sunlight that is reflected back, increasing the amount that is absorbed and converted into electricity.

The efficiency of solar cells is an important consideration, as it determines the amount of electricity that can be generated from a given area of solar panels. Improvements in cell efficiency are a key area of research and development in the solar industry.

Step 3: Module Assembly

The cells are then assembled into modules, which are the rectangular panels that you see on rooftops and in fields. The cells are sandwiched between two layers of glass, with a plastic or metal frame around the edges. The cells are wired together to create a circuit, and a junction box is added to the back of the panel to allow for connection to the electrical grid.

After the solar cells have been produced, they are assembled into modules, which are the individual units that make up a solar panel. The process of module assembly can vary depending on the type of panel being produced.

For traditional solar panels, the cells are typically arranged in a grid-like pattern and then connected together using metal conductors. The cells are then sandwiched between a layer of tempered glass on the front and a layer of polymer on the back to protect them from the elements.

For thin-film solar panels, the process of module assembly is different. Instead of using individual cells, the thin-film material is deposited onto a substrate, such as glass or metal, to create a single continuous layer. This layer is then cut into individual modules, which can be assembled into a solar panel.

Once the modules have been assembled, they undergo a series of quality control tests to ensure that they are functioning properly. These tests can include visual inspection, electrical performance testing, and environmental testing.

In addition, many solar panels are designed to be compatible with a range of mounting systems, which can be used to attach the panels to rooftops, poles, or other structures. The mounting system is an important consideration when installing solar panels, as it can affect the efficiency and durability of the system.

Overall, the process of module assembly is a critical step in the production of solar panels, as it determines the durability, efficiency, and performance of the final product. Advances in module assembly technology are helping to make solar panels more affordable and accessible to a wider range of consumers.

Step 4: Testing

Solar panels undergo several different types of testing, including visual inspection, electrical performance testing, and environmental testing. Environmental testing involves exposing the panels to extreme temperatures, humidity, and UV radiation to simulate the effects of long-term exposure to the elements. Panels that fail the testing process are either repaired or recycled.

Once the solar panels have been assembled, they undergo a series of tests to ensure that they are functioning properly and meet the required performance standards. The testing process can include both mechanical and electrical tests.

Mechanical testing involves subjecting the solar panels to various stresses, such as high winds, extreme temperatures, and exposure to moisture, to ensure that they are durable and can withstand a range of environmental conditions. The panels are also tested for their ability to resist impact and vibration, which can help prevent damage during shipping and installation.

Electrical testing involves measuring the electrical output of the solar panels to ensure that they are generating the expected amount of power. This testing can include measuring the voltage, current, and power output of the panels under various conditions, such as different levels of sunlight and temperature.

In addition, solar panels may be tested for their performance over time, as exposure to sunlight and other environmental factors can cause gradual degradation of the materials. This testing can help identify any potential issues with the panels before they become major problems.

Overall, the testing process is an important part of the solar panel production process, as it helps ensure that the panels are safe, reliable, and meet the required performance standards. Advances in testing technology are helping to make solar panels more efficient and durable, and are contributing to the growth of the solar industry around the world.

Step 5: Installation

The installation of solar panels requires careful planning to ensure that they are oriented in the most efficient direction to capture the most sunlight. Panels that are mounted on rooftops may also require reinforcement to support the weight of the panels. In addition, the installation process must comply with local building codes and regulations.

Conclusion

The process of making solar panels is complex, but it all starts with the production of polysilicon and ends with the installation of the panels. While the upfront cost of installing solar panels can be high, the long-term benefits in terms of energy savings and reduced carbon emissions are well worth it. As technology continues to advance, we can expect to see even more efficient and cost-effective solar panels in the future.

This information is for knowledge only, not to hurt anyone's feelings.

Laser & Optical Fiber

INTRODUCTION:

LASER stands for Light Amplification by Stimulated Emission of Radiation. Laser

technology started with Albert Einstein in 1917, he has given theoretical basis for the

development of Laser. The technology further evolved in 1960 when the very first laser

called Ruby Laser was built at Hughes Research Laboratoriesby T.H. Mainmann.

CHARACTERISTIC OF LASER RADIATION:

The laser beam has the properties given below which distinguish it from an ordinary beam of

light. Those are

1. Highly directional

2. Highly monochromatic

3. Highly intense

4. Highly coherence

1. Highly directional:

A conventional light source emits light in all directions. On the other hand, Laser

emits light only in one direction. The width of Laser beam is extremely narrow and hence a

laser beam can travel to long distances without spreading.

The directionality of laser beam is expressedin terms of divergence

Δ𝜃 =

𝑟2 − 𝑟1

𝑑2 − 𝑑1

Where r1and r2are the radii of laser beam spots at distances of d1 and d2 respectively from

laser source.

2. Highly monochromatic:

A monochromatic source is a single frequency or single wavelength source of light.

The laser light is more monochromatic than that of a convectional light source. This may be

due to the stimulated characteristic of laser light. The band width of convectional

monochromatic light source is 1000A0. But the band width of ordinary light source is 10 A0.

For high sensitive laser source is 10-8 A0.

3. Highly intense:

Laser light is highly intense than the conventional light. A one milli-Watt He-Ne laser

is highly intense than the sun intensity. This is because of coherence and directionality of

laser. Suppose when two photons each of amplitude ‘A’ are in phase with other, then young’s

principle of superposition, the resultant amplitude of two photons is 2A and the intensity is

4a2. Since in laser many numbers of photons are in phase with each other, the amplitude of

the resulting wave becomes ‘nA’ and hence the intensity of laser is proportional to n2A2. So

1mw He-Ne laser is highly intense than the sun.

4. Highly coherence:

A predictable correlation of the amplitude and phase at any one point with other point

is called coherence.In case of conventional light, the property of coherence exhibits between

a source and its virtual source where as in case of laser the property coherence exists between

any two sources of same phase.

There are two types of coherence

i) Temporal coherence

ii) Spatial coherence.

    Temporal coherence (or longitudinal coherence):

    The predictable correlation of amplitude and phase at one point on the wave train w .r.

    t another point on the same wave train, then the wave is said to be temporal coherence.

    Spatial coherence (or transverse coherence):

    The predictable correlation of amplitude and phase

    at one point on the wave train w. r .t another point on a

    second wave, then the waves are said to be spatial

    coherence (or transverse coherence).Two waves are said to

    be coherent when the waves must have same phase & amplitude.

This information is for knowledge only, not to hurt anyone's feelings.

OPTICAL FIBER IN COMMUNICATION SYSTEM

OPTICAL FIBER IN COMMUNICATION SYSTEM

The most important application of optical fibers occurs in the field of communication.

Fiber optic communication systems comprise of the following units.

Information signal source:

 The information signal to be transmitted may be voice, video or computer data (analog signals).

 In order to communicate through optical fiber, the analog signals are converted into electrical signals.( by Analog to Digital converter)

 The converted electrical signals are passed through the transmitter. Transmitter:

 The transmitter is a modulator device used to receive electrical input signal, and then modulate it into digital pulses for propagation into an optical fiber.

 The modulator consists of a driver and a light source as shown in fig.

 The driver receives the electrical signals and then converts into the digital pulses.

 These digital pulses are converted into optical signals after passing through a light source, generally either light emitting diodes (LED’s) or a semi conductor laser is used as light source.

 The optical signals are then focused into the optical fiber as shown in fig.

Optical Fiber (or) Transmission medium:

 The optical fiber is used as transmission medium between the transmitter and the receiver.

 The optical signals are then fed into an optical fiber cable where they are transmitted over long distances using the principle of total internal reflection.

Receiver:

 The receiver is a demodulator device used to receive the optical signals from the optical fiber and then convert into electrical signals.

 The demodulator consists of a photodetector, an amplifier and a signal restorer.

 The optical signals which are emerging from the optical fiber are received by photo

Detector.

 The photodetector converts the optical signals into electrical signals.

 The electrical signals are then amplified by the amplifier and the amplified electrical signals are converted into digital form.

 The amplified electrical signals are fed to a signal restorer where the original voice is recovered.

Advantages of Optical Fibers in communication system:

 High data transmission rates and bandwidth.

 Low losses.

 Small cable size and weight.

 Immunity to EM radiations.

 Safety due to lack of sparks.

 Data security.

APPLICATIONS OF OPTICAL FIBERS:

(1) Due to high band-width, light can transmit at a higher rate up to 1014 to 1015 Hz. Than radio or micro-frequencies.

(2) Long distance signal transmission.

(3) They are used for exchange of information in cable television, space vehicles, sub-marines

(4) Optical fibers are used in industry in security alarm systems, process control & industrial automation.

(5) They are used in pressure sensors in biomedical & engine control applications.

This information is for knowledge only, not to hurt anyone's feelings.

Optical Fiber

INTRODUCTION TO OPTICAL FIBER:

Optical Fiber is a branch of physics which deals with the transmission & reception of light waves using optical fibers which acts as a guiding media. The transmission of light waves by fiber optics was first demonstrated by John Tyndall in 1870.

Optical Fiber:

Optical fiber is a thin & transparent guiding medium or material which guides the information carrying light waves. It is a cylindrical wave-guide system which propagates the data & speech signals in the optical frequency range.

A light beam acting as a carrier wave is capable of carrying more information than radio

waves & microwaves because of its high frequency as shown below.

Radio waves - 104 Hz , Micro waves - 1010 Hz, Light waves - 1015 Hz

Construction:

An optical fiber is a very thin, flexible transparent made with plastic or glass.

It has cylindrical shape consisting of three layers or sections.

(1) The Core

(2) The Cladding

(3) The Outer jacket or Buffer jacket

(1)The Core: It is the central layer surrounded by another layer called cladding. Light is  transmitted     within the core which has refractive index (n1). It is a denser medium. Core is made of silica (SiO2).

(2)The Cladding: It is the second layer, surrounded by a third layer called the outer jacket. It has   refractive index n2 which is less than the refractive index of core i.e (n1 >n2 ). It acts as a rarer   medium. It keeps the light within the core because n1>n2. To lower the refractive index of cladding   the silica is doped with phosphorous or bismuth material.

(3)The Outer or Buffer Jacket: It is the third layer it protects the fiber from moisture & abrasion. To      provide necessary toughness & tensile strength, a layer of strength member isarranged surrounding        buffer jacket. It is made of polyurethane material.

Working Principle of Optical Fiber:

Total Internal Reflection: The principle of optical fiber is total internal reflection.

Condition for Total Internal Reflection:

 (1) The light ray should move from denser to rarer medium.

 (2) The refractive index of core must be greater than cladding i.e. n1>n2

 (3) The angle of incidence (i) must be greater than the critical angle(θc) i.e. i>θc.

 (4) The critical angle𝜃𝑐 = 𝑠𝑖𝑛−1* 𝑛2/𝑛1.

TYPES OF OPTICAL FIBERS:

Based on Mode:

The rays travelling in the fiber by total internal reflection are called modes.

(1) Single mode fibers:

 If the thickness of the fiber is so small that it supports only one mode then the fiber is called single modefiberor mono mode fiber.

 The core diameter of this fiber is about 8 to 10μm and the outer diameter of cladding is 60 to 70μm.

(2)Multi mode fibers:

 If the thickness of the fiber is very large that it supports more than one mode then the fiber is called multi mode fiber.

 The core diameter of this fiber is about 50 to 200μm and the outer diameter of cladding is 100 to 250μm.

Based on refractive index profile:

(1) Step-Index Optical fiber:

 In a step-index optical fiber, the entire core has uniform refractive index n1 slightly greater than the refractive index of the cladding n2.

 Since the index profile is in the form of a step, these fibers are called step-index fibers.

 The transmission of information will be in the form of signals or pulses.

 These are extensively used because distortion and transmission losses are very less.

 Step-index optical fibers are of two types. They are

    (i) Single mode step-index fiber

    (ii) Multi-mode step-index fiber

(2) Graded index optical fiber:

 In this fiber, the refractive index of the core varies radially.

 It has maximum refractive index at its centre, which gradually falls with increase of radius and at the core-cladding interface matches with refractive index of cladding.

 Variation of refractive index of the core with radius is given by n(x) = 𝑛1[1 − 2Δ (x/a)p]2

   Where 𝑛1 -> refractive index at the centre of the core

    a-> radius of the core

    Δ-> Fractional index change,Δ = 𝑛1−𝑛2/𝑛1

    p-> grating profile index number

 This fiber divided into two types.

( i ) Single-mode graded index fiber

( ii ) Multi-mode graded index fiber

Based on types of materials:

(1) glass-glass optical fiber

(2) glass-plastic optical fiber

(3) plastic-plastic optical fiber

This information is for knowledge only, not to hurt anyone's feelings.

A closer look at windmills

Introduction:

As the world searches for cleaner and more sustainable energy sources, wind power has emerged as a promising option. Windmills, in particular, have been used for centuries to harness the power of the wind for various purposes. In this article, we'll take a closer look at windmills, their history, how they work, and their potential as a source of renewable energy.

History of Windmills:

The earliest recorded windmill design dates back to ancient Persia, where vertical-axis windmills were used to grind grain and pump water. Over time, windmills spread throughout the world and were used for a variety of purposes, including milling grain, sawing wood, and pumping water. In the 19th century, the development of the steam engine led to a decline in the use of windmills, but they experienced a resurgence in the 20th century as a source of renewable energy.

Offshore Windmills: In recent years, offshore wind turbines have become an increasingly popular option for wind power. Offshore wind turbines can take advantage of stronger and more consistent winds that are available over water. Although offshore wind turbines are more expensive to build and maintain than land-based turbines, they can produce more electricity and have less impact on wildlife and human populations.

Maintenance and Operation: While wind turbines require less maintenance than other forms of power generation, regular maintenance is still necessary to ensure optimal performance and prevent breakdowns. Maintenance can include tasks such as blade cleaning and inspection, gearbox oil changes, and electrical component checks. Additionally, wind turbines require a team of skilled operators to ensure they are running properly and safely.

Bird and Bat Protection: One of the concerns with wind turbines is their potential impact on birds and bats. While bird and bat fatalities do occur, studies have shown that wind turbines are responsible for a small fraction of bird and bat deaths compared to other causes such as domestic cats and collisions with buildings. To minimize their impact on wildlife, wind turbines are often sited away from migratory paths and sensitive habitats.

Future of Wind Power: As wind power continues to gain popularity, there are several innovations on the horizon that may improve the efficiency and cost-effectiveness of wind turbines. These innovations include larger and more efficient blades, advanced control systems, and energy storage solutions. Additionally, the integration of wind power with other forms of renewable energy, such as solar power, can help create a more stable and reliable energy grid.

How Windmills Work:

Windmills work by converting the kinetic energy of the wind into mechanical energy, which can then be used for a variety of purposes. Most modern windmills consist of a rotor with two or three blades, which are mounted on a tower. As the wind blows, it causes the blades to rotate, which in turn spins a generator to produce electricity. The amount of electricity produced depends on the size and speed of the windmill, as well as the efficiency of the generator.

Types of Windmills:

There are two main types of windmills: horizontal-axis windmills and vertical-axis windmills. Horizontal-axis windmills are the most common type and have blades that rotate around a horizontal axis. Vertical-axis windmills have blades that rotate around a vertical axis and are less common, but can be more efficient in certain conditions.

Advantages of Windmills:

Windmills have several advantages as a source of renewable energy. They produce no greenhouse gas emissions or air pollution, and the land beneath and around wind turbines can still be used for farming or other purposes. Wind power is also becoming more cost-competitive with traditional forms of energy, and can provide a reliable source of electricity in areas with consistent wind patterns.

Conclusion:

Windmills have come a long way since their ancient origins and are poised to play a significant role in our energy future. As technology continues to advance and costs continue to drop, wind power will become an increasingly important source of renewable energy. With proper planning and management, wind power can help reduce our dependence on fossil fuels and move us towards a more sustainable energy future.

This information is for knowledge only, not to hurt anyone's feelings.

LASERS

1 INTRODUCTION

Laser is an acronym for Light Amplification by Stimulated Emission of Radiation. In 1917, based on thermodynamic equilibrium between atoms and radiation, Albert Einstein predicted that there are two kinds of light emission from matter, namely spontaneous and stimulated emissions.

He further proved that both spontaneous emission and stimulated emission are necessary to derive Plan ck’s Quantum theory of radiation, which is the basis for theoretical prediction of Laser. In 1960, Charles Towner demonstrated experimentally stimulated emission for first time at Microwave frequencies as MASER and received Noble prize in 1964. In the same year, Theodore Maiman demonstrated stimulated emission based LASER in optical frequencies using Ruby rod as lasing medium, and Ali Javan and his co-workers constructed laser device using He-Ne gas as lasing medium. In 1962, lasing action using semiconductor medium was invented. Since then a variety of materials were used to demonstrate lasing action using liquids, ionized gases, dyes etc.

2 Characteristics of Laser

Some of the unique characteristics of lasers which are different from ordinary incoherent light are:

(1) Directionality

(2) High intensity

(3) Monochromacity and

(4) High degree of coherence

3 Directionality

Any conventional light source like incandescent light emits radiations in all direction whereas a laser source emits radiation only in one direction. The directionality of the laser beam is generally expressed in terms of full angle beam divergence which is twice the angle that the outer edge of the beam makes with the axis of the beam. The outer edge is defined as a point at which the intensity (I) of the beam drops to 1/e times its value at the centre.

4 Intensity

A laser emits light radiation into a narrow beam, and its energy is concentrated in a small region. This concentration of energy both spatially and spectrally accounts for the great intensity of lasers. It can be shown that even a one-watt laser would appear many thousand times more intense than a 100 watt ordinary lamp. If we compare the number of photons emitted in one second from a square centimetre of a surface of a laser source with those from an ordinary source, the ratio is of the order of l028 to 1012.

Monochromacity

The light from a laser source is highly monochromatic compared to light from a conventional incoherent monochromatic source. The monochromacity is related to the wavelength spread of radiation.

Coherence

Laser radiation is characterized by a high degree of ordering of the light field compared to radiation from other sources. In other words, laser light has a high degree of coherence, both spatial and temporal.

Spatial coherence, also called transverse coherence, describes how far apart two sources or two portions of the same source can be located in a direction transverse to the direction of observation and still exhibit coherent properties over a range of observation points. The high degree of coherence of laser radiation makes it possible to realise a tremendous spatial concentration of light power such as 1013 watt in a space with linear dimensions of only 1 m.

The temporal coherence on the other hand, normally refers to the relative phase or the coherence of two waves at two separate locations along the propagation direction of the two beams. It is sometimes referred to as longitudinal coherence. If we assume that two waves are exactly in phase at the first location, then they will maintain the same phase at the second location up to a distance lC where lC is defined as the coherence length. For white light the coherence length is of the order of hundred nm while for monochromatic incoherent light its value is of hundred microns. For lasers the value of coherence length is of the order of several metres.

Types of Lasers

Lasers are divided into different types based on the lasing materials used. Accordingly the important types of lasers are Solid state lasers, gas lasers, and semiconductor lasers. Most of the lasers emit light in IR or visible region, work in Continuous wave (CW) mode or in pulsed mode. Table 5.1 gives some important types of Lasers with examples.

This information is for knowledge only, not to hurt anyone's feelings.

The study of gravitation

Hello everyone, and welcome to my blog! Today, we're going to talk about one of the most fundamental concepts in physics: gravitation. Gravitation is the force that governs the behavior of objects in space, and it's what keeps us anchored to the ground and the planets in their orbits around the sun. But how did we come to understand this force, and what are some of the key concepts and theories involved in its study? Let's dive in and find out!

First, let's start with some basic definitions. Gravitation is the force of attraction that exists between any two objects in the universe. This force is proportional to the mass of the objects and inversely proportional to the square of the distance between them. In other words, the more massive the objects and the closer they are, the stronger the force of gravitation between them.

The study of gravitation dates back thousands of years, to the ancient Greeks and their theories about the motion of the planets. But it wasn't until the 17th century that a comprehensive theory of gravitation began to emerge, thanks to the work of Isaac Newton. Newton's law of universal gravitation stated that every object in the universe attracts every other object with a force that is directly proportional to their masses and inversely proportional to the square of the distance between them. This simple but powerful equation allowed scientists to predict the behavior of celestial bodies with incredible accuracy, and it remained the dominant theory of gravitation for centuries.

However, in the early 20th century, Albert Einstein revolutionized our understanding of gravitation with his theory of general relativity. According to Einstein, gravitation is not a force like other forces in nature, but rather a curvature of spacetime itself. In other words, massive objects like planets and stars warp the fabric of spacetime around them, causing other objects to follow curved paths in their vicinity. This theory has been confirmed by numerous experiments and observations, and it has led to new insights into the behavior of black holes, the structure of the universe, and the nature of time itself.

So what does all of this mean for us today? Well, for one thing, it means that we have a much deeper understanding of how the universe works than we did even a century ago. It also means that we can make incredibly precise predictions about the behavior of celestial bodies, and that we can use this knowledge to explore the cosmos and unlock its secrets. And finally, it means that there is still so much more to learn and discover about gravitation and its role in the universe.

Gravity is not just a force between massive objects in space, but it also affects the behavior of light. According to Einstein's theory of general relativity, gravity can bend light as it passes through a massive object, such as a star or a galaxy. This effect, known as gravitational lensing, has been observed and studied by astronomers, and it has helped us to understand the structure and evolution of the universe.

The strength of the gravitational force between two objects depends not only on their masses and distances, but also on the gravitational constant. This constant, denoted by G, is a fundamental constant of nature that determines the strength of the force of gravitation. Its precise value has been measured with great precision by scientists, and it is an important parameter in many areas of physics and engineering.

Gravitational waves are another consequence of Einstein's theory of general relativity. These are ripples in the fabric of spacetime that are generated by the motion of massive objects, such as two merging black holes. Gravitational waves were first detected in 2015 by the Laser Interferometer Gravitational-Wave Observatory (LIGO), and this discovery opened up a new era of astronomy, allowing us to observe the universe in a completely new way.

The study of gravitation has also led to the development of important technologies, such as GPS navigation. The GPS system relies on a network of satellites that orbit the Earth, and these satellites are equipped with atomic clocks that are synchronized with each other. However, because of the effects of gravitation, time passes at a slightly different rate on the surface of the Earth than in orbit. By taking into account these relativistic effects, GPS receivers can determine the precise location and time anywhere on the planet.

Finally, the study of gravitation has important implications for our understanding of the fundamental laws of nature. Scientists are currently trying to reconcile Einstein's theory of general relativity with the other fundamental theory of nature, quantum mechanics, in a theory of quantum gravity. This is one of the biggest challenges in theoretical physics today, and it could potentially unlock a new era of discovery and understanding about the universe.

Gravity is not just a force between massive objects in space, but it also affects the behavior of light. According to Einstein's theory of general relativity, gravity can bend light as it passes through a massive object, such as a star or a galaxy. This effect, known as gravitational lensing, has been observed and studied by astronomers, and it has helped us to understand the structure and evolution of the universe.

The strength of the gravitational force between two objects depends not only on their masses and distances, but also on the gravitational constant. This constant, denoted by G, is a fundamental constant of nature that determines the strength of the force of gravitation. Its precise value has been measured with great precision by scientists, and it is an important parameter in many areas of physics and engineering.

Gravitational waves are another consequence of Einstein's theory of general relativity. These are ripples in the fabric of spacetime that are generated by the motion of massive objects, such as two merging black holes. Gravitational waves were first detected in 2015 by the Laser Interferometer Gravitational-Wave Observatory (LIGO), and this discovery opened up a new era of astronomy, allowing us to observe the universe in a completely new way.

The study of gravitation has also led to the development of important technologies, such as GPS navigation. The GPS system relies on a network of satellites that orbit the Earth, and these satellites are equipped with atomic clocks that are synchronized with each other. However, because of the effects of gravitation, time passes at a slightly different rate on the surface of the Earth than in orbit. By taking into account these relativistic effects, GPS receivers can determine the precise location and time anywhere on the planet.

Finally, the study of gravitation has important implications for our understanding of the fundamental laws of nature. Scientists are currently trying to reconcile Einstein's theory of general relativity with the other fundamental theory of nature, quantum mechanics, in a theory of quantum gravity. This is one of the biggest challenges in theoretical physics today, and it could potentially unlock a new era of discovery and understanding about the universe.

The study of gravitation has been a fascinating and important topic for scientists and researchers for centuries. Our understanding of gravity has evolved over time, from the early observations of falling apples to the complex theories of Einstein's general relativity. Here are some additional points to help you understand more about this fascinating topic:

Gravity not only affects the behavior of massive objects in space, but it also affects the behavior of light. According to Einstein's theory of general relativity, gravity can bend light as it passes through a massive object, such as a star or a galaxy. This effect, known as gravitational lensing, has been observed and studied by astronomers, and it has helped us to understand the structure and evolution of the universe.

The strength of the gravitational force between two objects depends not only on their masses and distances, but also on the gravitational constant. This constant, denoted by G, is a fundamental constant of nature that determines the strength of the force of gravitation. Its precise value has been measured with great precision by scientists, and it is an important parameter in many areas of physics and engineering.

Gravitational waves are another consequence of Einstein's theory of general relativity. These are ripples in the fabric of spacetime that are generated by the motion of massive objects, such as two merging black holes. Gravitational waves were first detected in 2015 by the Laser Interferometer Gravitational-Wave Observatory (LIGO), and this discovery opened up a new era of astronomy, allowing us to observe the universe in a completely new way.

The study of gravitation has also led to the development of important technologies, such as GPS navigation. The GPS system relies on a network of satellites that orbit the Earth, and these satellites are equipped with atomic clocks that are synchronized with each other. However, because of the effects of gravitation, time passes at a slightly different rate on the surface of the Earth than in orbit. By taking into account these relativistic effects, GPS receivers can determine the precise location and time anywhere on the planet.

Finally, the study of gravitation has important implications for our understanding of the fundamental laws of nature. Scientists are currently trying to reconcile Einstein's theory of general relativity with the other fundamental theory of nature, quantum mechanics, in a theory of quantum gravity. This is one of the biggest challenges in theoretical physics today, and it could potentially unlock a new era of discovery and understanding about the universe.

The value of the gravitational force depends on the masses of the objects involved and the distance between them. According to Newton's law of universal gravitation, the gravitational force between two objects is directly proportional to the product of their masses and inversely proportional to the square of the distance between them. This relationship can be expressed mathematically as:

F = G * (m1 * m2) / r^2

where F is the gravitational force between the two objects, m1 and m2 are the masses of the two objects, r is the distance between their centers of mass, and G is the gravitational constant, which has a value of approximately 6.674 x 10^-11 N * m^2 / kg^2.

Using this formula, we can calculate the gravitational force between any two objects of known mass and distance. For example, the gravitational force between the Earth and the Sun is approximately 3.52 x 10^22 N, while the gravitational force between two 1 kg masses separated by a distance of 1 meter is approximately 6.67 x 10^-11 N.

In conclusion, the study of gravitation has led to many important discoveries and technological advancements, and it continues to be a fascinating and active field of research. As we continue to learn more about the nature of gravity and its effects on the universe, we will undoubtedly gain new insights and understandings that will shape our view of the cosmos and the laws of nature that govern it.

This information is for knowledge only, not to hurt anyone's feelings.

Electrical Train Operation Explanation

 Intro:

Electric trains have become an integral part of modern transportation systems around the world. These trains are efficient, fast, and environmentally friendly, making them an ideal mode of transportation for commuters and long-distance travelers alike. But have you ever wondered how electric trains work? In this post, we'll take a closer look at the technology behind these modern marvels.

Section 1: The Basics of Electric Trains

Electric trains are powered by electricity, which is delivered to the train through an overhead catenary system, a third rail, or a rechargeable battery. The electricity is used to power an electric motor that drives the train's wheels, propelling it forward.

Electric trains have become a popular mode of transportation for people all around the world. They are efficient, fast, and environmentally friendly, making them a great option for commuters and travelers alike. But how do electric trains work? In this post, we'll take a closer look at the basics of electric trains and how they function.

The Power Source

Electric trains are powered by electricity, which is delivered to the train through an overhead catenary system, a third rail, or a rechargeable battery. The electricity is used to power an electric motor that drives the train's wheels, propelling it forward. The power source provides the necessary energy to keep the train running.

The Electric Motor

The electric motor is the heart of the train. It converts the electrical energy from the power source into mechanical energy, which is used to move the train. Electric motors can be either AC or DC, and they come in different sizes and power outputs, depending on the type and size of the train.

The Control System

The control system is responsible for managing the speed and direction of the train, as well as the braking system. The control system receives information from sensors throughout the train, which allows it to make adjustments as necessary. The control system ensures that the train operates safely and efficiently.

Section 2: The Components of an Electric Train

An electric train is made up of several key components, including the locomotive, the passenger cars, and the electrical system. The locomotive is the engine of the train, containing the electric motor, batteries, and control systems. The passenger cars are where the passengers sit or stand during the journey, and they may also contain amenities like bathrooms, food service areas, and sleeping compartments.

Electric trains are a popular mode of transportation all over the world. They are efficient, fast, and environmentally friendly, making them an excellent option for commuters and travelers. But what exactly goes into making an electric train? In this post, we'll take a closer look at the components of an electric train and how they work together to make the train function.

The Locomotive

The locomotive is the engine of the train and is responsible for providing the power that propels the train forward. The locomotive contains the electric motor, batteries, and control systems that are necessary for the train to function. The electric motor converts the electrical energy from the power source into mechanical energy, which drives the train's wheels.

The Passenger Cars

Passenger cars are where the passengers sit or stand during the journey. They can vary in size and layout depending on the type of train and its intended use. Passenger cars may also contain amenities like bathrooms, food service areas, and sleeping compartments.

The Electrical System

The electrical system is responsible for delivering power to the train's electric motor. There are a few different ways that this can be done, including an overhead catenary system, a third rail, or a rechargeable battery. The electrical system includes the power supply, the electric motor, and the control system, which manages the speed and direction of the train.

The Braking System

The braking system is a crucial safety feature of the train. It allows the train to slow down and stop quickly if necessary. There are several different types of brakes that can be used on an electric train, including regenerative brakes, friction brakes, and electromagnetic brakes.

The Couplers

Couplers are the mechanical devices that connect the different cars of the train together. They are designed to allow the cars to move independently while still remaining attached to one another. The type of coupler used on a train will depend on the type and size of the train.

The Wheels and Axles

The wheels and axles are what allow the train to move along the track. The wheels are made of steel and are designed to provide a smooth ride while also being able to withstand the weight of the train. The axles are what connect the wheels to the train's body, allowing them to rotate freely.

Section 3: The Electrical System

The electrical system of an electric train includes the power supply, the electrical motor, and the control system. The power supply delivers electricity to the motor, which converts the electrical energy into mechanical energy to move the train. The control system manages the speed and direction of the train, as well as the braking system.

The electrical system is responsible for delivering power to the train's electric motor, and it can be broken down into several different components.

Power Supply:

The power supply is what delivers the electricity to the train. It can be an overhead catenary system, which uses a wire strung above the tracks to deliver electricity to the train through a pantograph. It can also be a third rail, which is a low-voltage rail located beside or between the tracks that delivers electricity to the train through a shoe. Alternatively, the train can be powered by a rechargeable battery that is charged at specific intervals along the track.

Electric Motor:

The electric motor is what converts the electrical energy delivered by the power supply into mechanical energy, which is used to drive the train's wheels. Electric motors can be either AC or DC, and they come in different sizes and power outputs, depending on the type and size of the train.

Control System:

The control system is responsible for managing the speed and direction of the train, as well as the braking system. It receives information from sensors throughout the train, allowing it to make adjustments as necessary. The control system ensures that the train operates safely and efficiently. It can also be responsible for managing the distribution of power to the electric motor to ensure that it operates at its most efficient level.

Transformer and Rectifier:

For trains that use an overhead catenary system, the electrical energy delivered by the power supply is high-voltage AC power. This needs to be transformed into the appropriate voltage and type of current required by the electric motor. The transformer and rectifier are responsible for this process, changing the high-voltage AC power to low-voltage DC power, which is what the electric motor requires.

Inverter:

 For trains that use a rechargeable battery, the inverter is an essential component. It is responsible for converting the DC power stored in the battery to AC power, which is required by the electric motor.

Overall, the electrical system is a critical component of an electric train. It provides the necessary power to propel the train forward and allows it to operate efficiently and safely. The specific components of the electrical system can vary depending on the type and size of the train, but they all work together to provide a smooth and reliable ride.

Section 4: Types of Electric Trains

There are several types of electric trains, including high-speed trains, commuter trains, and subways. High-speed trains, such as the Shinkansen in Japan or the Eurostar in Europe, are designed to travel at speeds of over 250 km/h, while commuter trains and subways are used for shorter distances and stop more frequently.

Commuter Trains:

 These trains are designed for transporting large numbers of people within cities and their suburbs. They are typically composed of multiple passenger cars and may have different levels of service, such as express trains that skip some stations.

High-Speed Trains:

These trains are designed to travel at high speeds over long distances. They often use dedicated tracks and can travel at speeds of up to 300 km/h. High-speed trains are used primarily for intercity travel, allowing people to move between cities quickly and comfortably.

Freight Trains:

 Electric freight trains are used to transport large quantities of goods across long distances. They are often composed of long trains with multiple freight cars and are designed to operate efficiently, with a focus on safety and cost-effectiveness.

Light Rail Vehicles (LRVs):

LRVs are electric trains that operate in urban areas, typically on dedicated tracks or on streets alongside other vehicles. They are smaller and lighter than traditional commuter trains, and they often have frequent stops along their routes.

Rapid Transit Trains:

 Rapid transit trains, also known as subway or metro systems, operate in urban areas and transport people quickly and efficiently around a city. They may run on dedicated tracks or underground and are designed to make frequent stops at stations located throughout the city.

Maglev Trains:

 Maglev trains are a type of train that uses magnetic levitation to lift the train off the tracks, reducing friction and allowing for high speeds. These trains are still relatively new and are not yet in widespread use, but they have the potential to revolutionize transportation by providing ultra-fast, smooth, and quiet rides.

Section 5: Advantages of Electric Trains

Electric trains offer many advantages over other forms of transportation, including their energy efficiency, lower carbon emissions, and quiet operation. They are also fast, reliable, and can transport large numbers of passengers at once.

Section 6: Conclusion

Electric trains are a crucial component of modern transportation systems, and their technology is constantly evolving to make them even more efficient, fast, and environmentally friendly. By understanding the basics of how electric trains work, we can appreciate the complexity and sophistication of these amazing machines.
